geoembed¶

Generate vector embeddings from Cloud Optimised GeoTIFFs (COGs) using Databricks.

What is geoembed?¶

geoembed is a Python library for generating embeddings from COGs using Geospatial Foundation Models, such as DOFA.

The embeddings pipeline reads entire images onto the GPU, tiles them via torch.unfold() using a chip size and stride calculation, and runs batched inference.

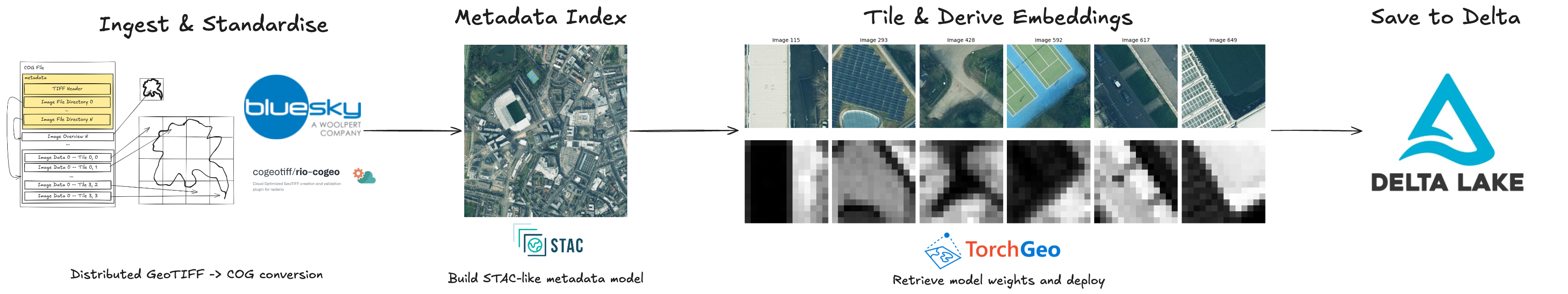

Pipeline flowchart — End-to-end pipeline: COGs → Metadata → GPU tiling → embeddings → Delta. Imagery: Copyright Bluesky International Ltd.

It runs on Databricks with GPU-accelerated inference via Spark.

It was developed as part of the Ministry of Housing, Communities and Local Government's (MHCLG) AAAI lab to predict the potential of brownfield land - you can read more about the project.

The embeddings pipeline has been open-sourced in case it is useful for other Databricks' users. Note: it had specific use case using aerial imagery within great Britain (EPSG:27700), so there are design choices made around this.

Key Features¶

Full-image GPU tiling — reads entire COGs onto GPU and tiles via torch.unfold() and a chip stride calculation
Double-buffered I/O — constantly fetches images for GPU inference
Spark-native — distributes across GPU workers via mapInPandas, writes to Delta natively
Spatial metadata on-the-fly — chip bounding boxes computed from affine transform during inference
Model registry — default is DOFA but you can register additional GeoFMs (e.g. Clay) via register_model()

Architecture¶

COGs → [Spark mapInPandas: FullImageGPUWorker] → Delta Table
         ├─ Read full image (rasterio, background thread)
         ├─ Transfer to GPU (float32, non_blocking)
         ├─ Tile via torch.unfold() and a chip stride calculation
         ├─ Batched inference (DOFA ViT-Base, FP16)
         └─ Compute spatial bounds (affine transform)

Currently distributed via Spark mapInPandas, but ideally would use Ray for running distributed geospatial inference - good examples include Wherobots and Xoople.

Pipeline Stages¶

Stage	Purpose	Compute
0a	Metadata extraction	CPU (Spark)
0b	COG conversion	CPU (Spark)
0c	STAC catalog (optional)	Driver
1	Embeddings	GPU (Spark `mapInPandas`)
